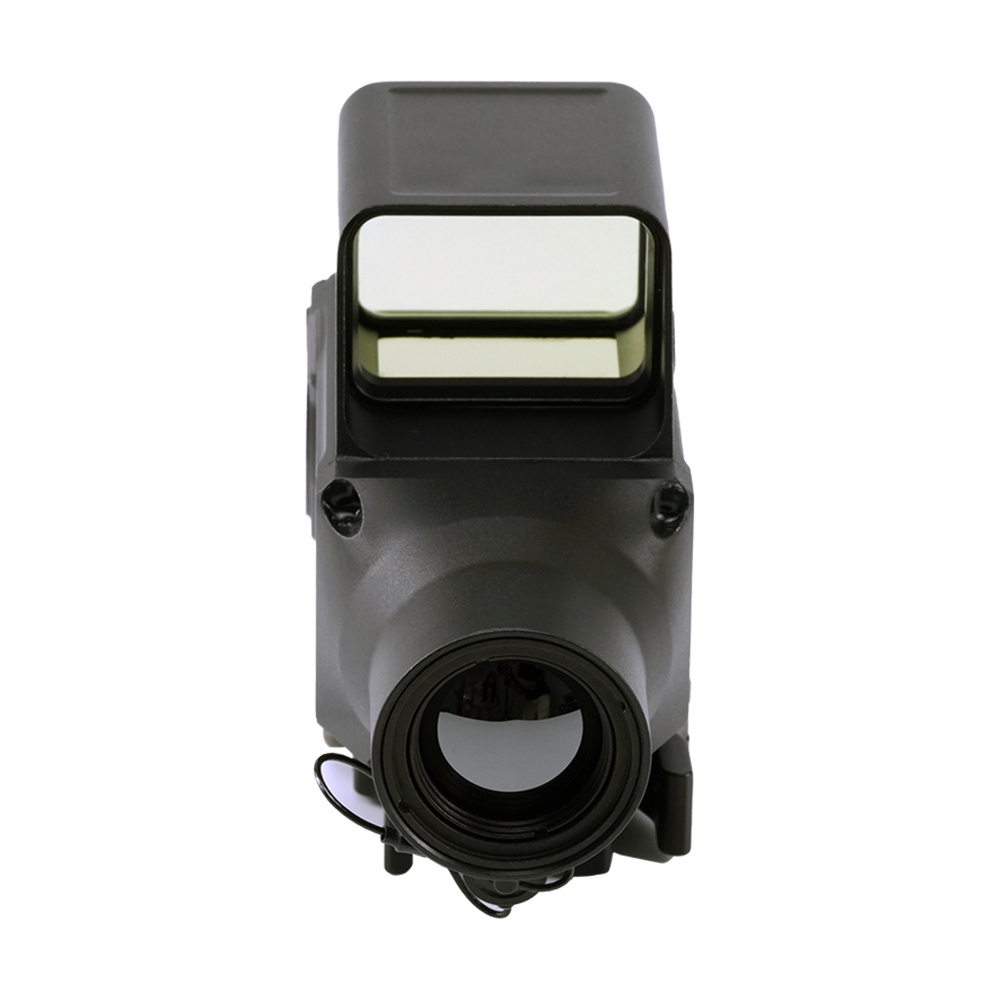

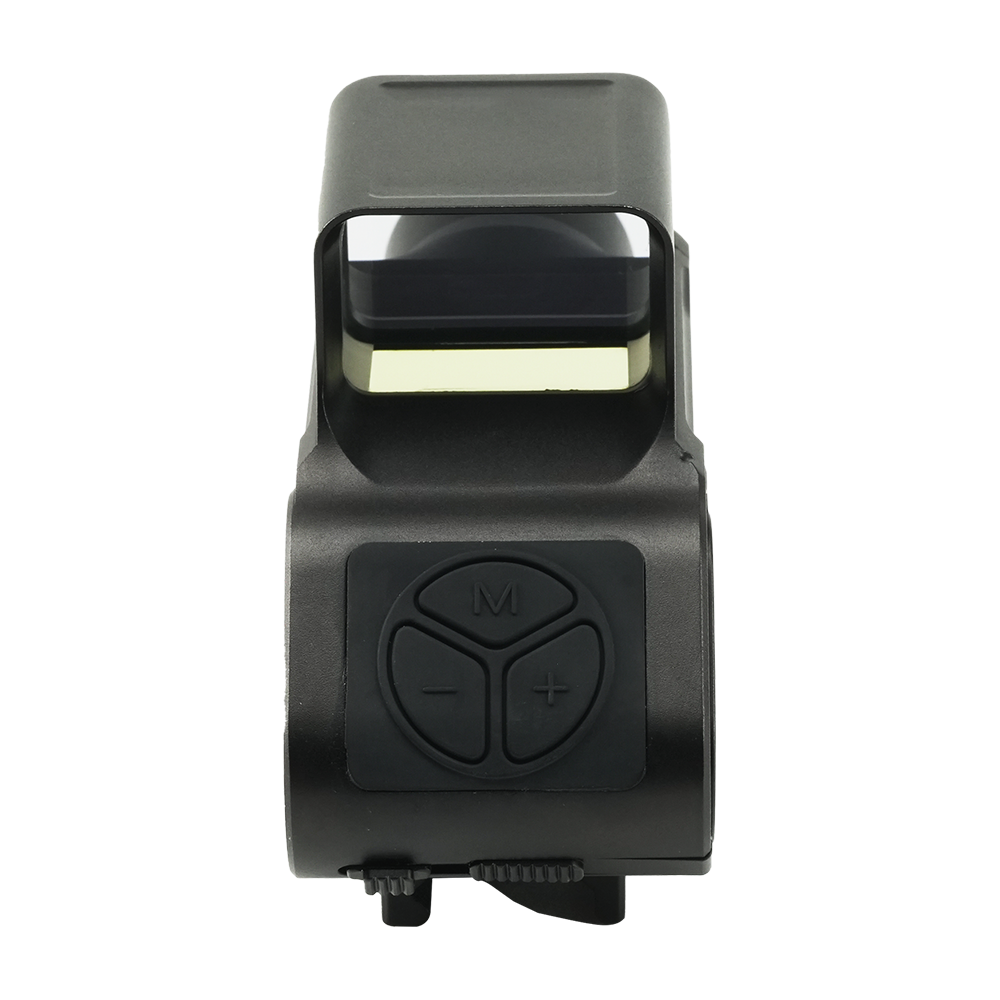

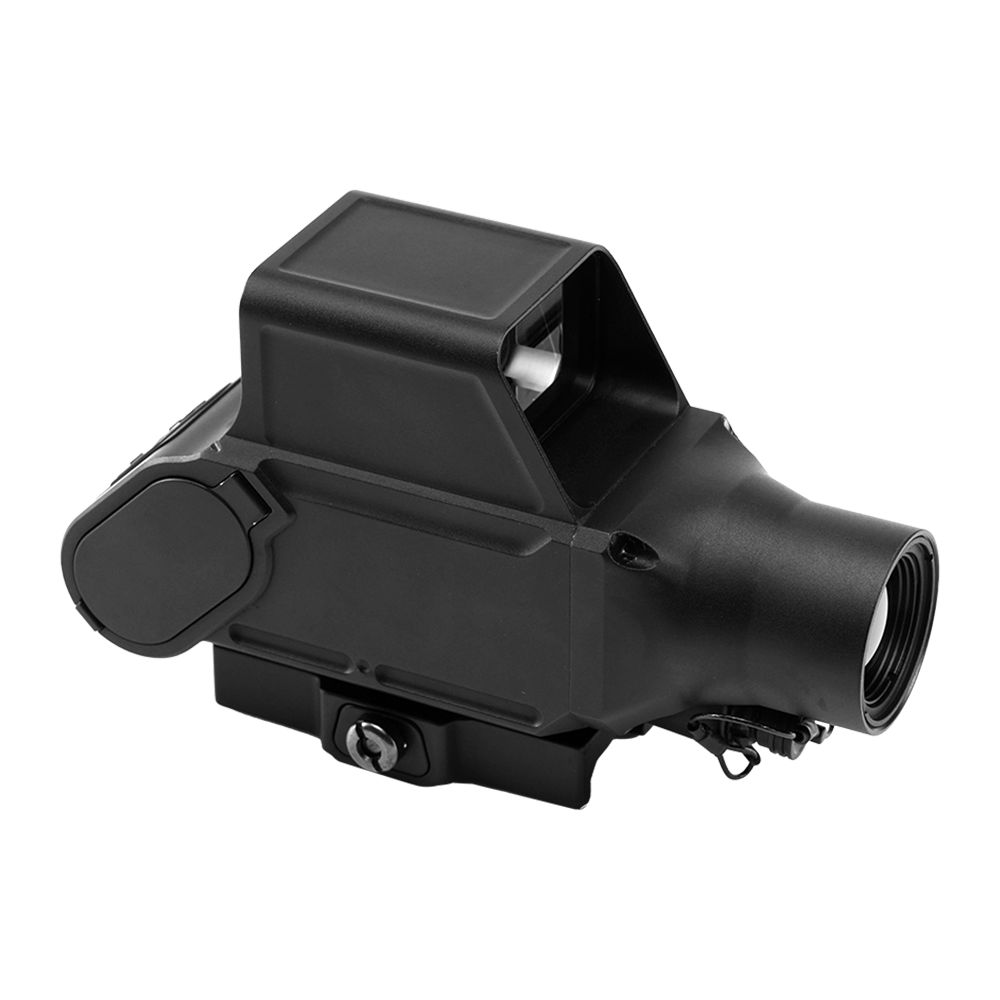

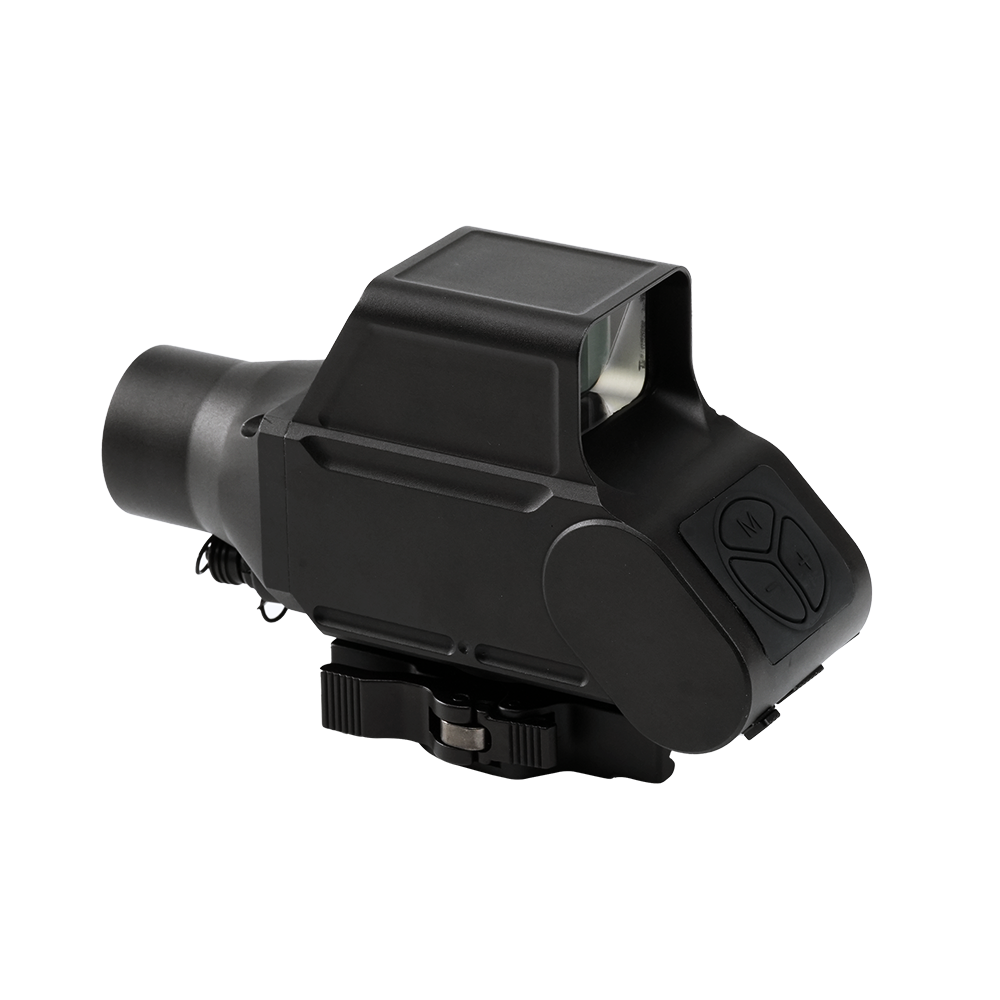

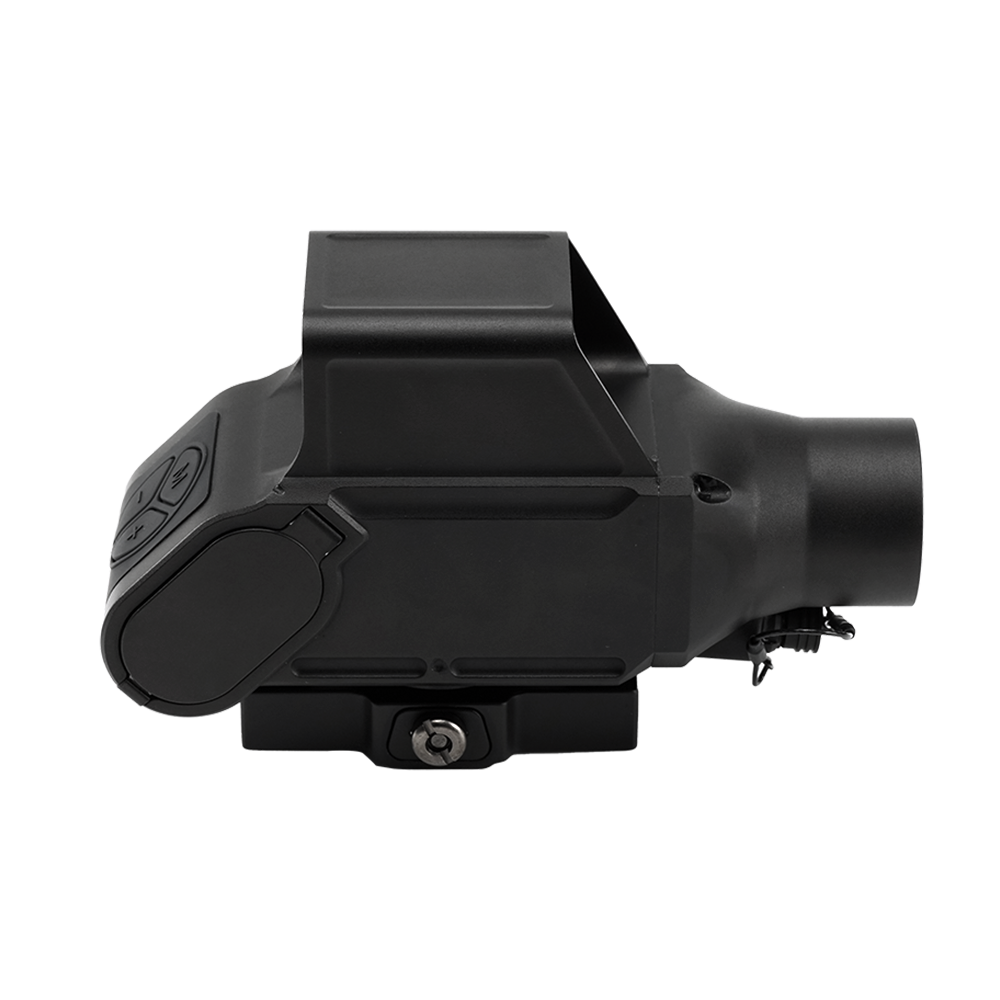

FuseX Thermal Red Dot Sight
The FuseX01 20/38 thermal red dot sight combines a 384 × 288, 12 μm detector with a 20 mm F1.0 lens, 50 Hz imaging, and red dot/thermal modes. It provides a detection range of 1000 m,…
Model
FuseX01 20/38
Resolution
384 x 288 px
Pixel pitch
12 µm
NETD
＜40mk
Product features
Thermal imaging advantages
- 384 × 288 thermal resolution, 12 μm pixels and NETD <40 mK
- 20 mm F1.0 lens, 1× magnification and 50 Hz frame rate
- Red dot and thermal image modes with 1×/2× digital zoom
- 1000 m detection range and 500 m recognition range
- 1024 × 768 OLED display and 37 × 25 mm window
- 5 reticle types with 0.25 mil adjustment accuracy
- Two CR123A batteries with 7-hour battery life
- Standard Picatinny rail interface and IP67 aluminum-alloy housing
Technical data
Specification table
| Product | FuseX Thermal Red Dot Sight |
|---|---|
| Model | FuseX01 20/38 |
| Sensor | |
| Type | Uncooled Vox |
| Resolution | 384 x 288 px |
| Pixel pitch | 12 µm |
| NETD | ＜40mk |
| Frame rate | 50Hz |
| OPTICS | |
| Focal length | 20mm/F1.0 |
| Magnification | 1x |
| Digital zoom | 1x/2x |
| Eye relief（Thermal） | 160mm |
| Eye relief（Central Aiming） | Unlimited |
| FOV (H × V), ° | ≥13°×9.8° |
| Detection Range | 1000m |
| Recognition Range | 500m（Standing/ Moving Person） |
| Focus Range | 5-500m |
| Display Type | OLED |
| Display resolution | 1024×768 px |
| Window Size | 37mm×25mm |
| Palette | Green-hot/ White-hot/ Black-hot |
| Image Mode | Red Dot/Thermal |
| ELECTRONICS | |
| Brightness & Contrast Adjustment | Supported |
| Battery Type | 2×CR123A |
| Battery Life | 7h |
| Start Up Time | 15s |
| Reticle Adjustment Accuracy | 0.25mil |
| Reticle Adjustment Range | ≥15mil |
| Reticle Color | Black/ White/ Red/ Green/ Yellow |
| Reticle Type | 5 |
| PHYSICAL | |
| Mount Interface | Standard Picatinny Rail |
| Size | 165mm×65mm×90mm |
| Weight（Including Battery & Mount） | ≤600g |
| ENVIRONMENTAL/WARRANTY | |
| Housing Material | Aluminum Alloy |
| Waterproofing | IP67 |
| Operating Temperature | -20℃~50°C |
| Storage Temperature | -50℃~70°C |
| Max. Recoil | 700g |
