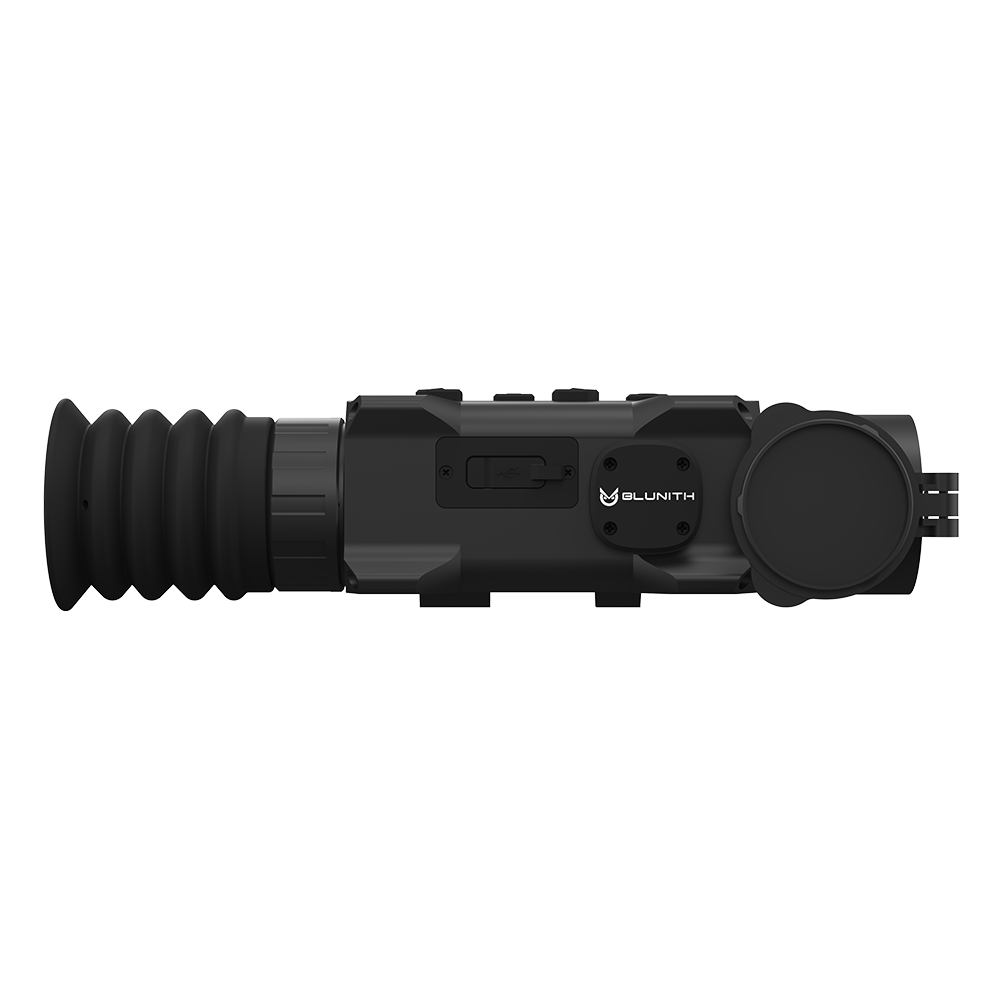

ADVENTURE 03 640 Thermal Imaging Scope
The ADVENTURE 03 Thermal Imaging Scope is a compact and high-performance thermal sight designed for hunting and outdoor observation. Equipped with a 640 × 512, 12 μm thermal detector and NETD ≤25 mK, it delivers clear…
Model
AD03 35/64
Resolution
640 x 512px
Pixel Pitch
12μm
NETD
≤25mk
Product features
Thermal imaging advantages
- 640 × 512 thermal detector with 12 μm pixels and NETD ≤25 mK
- 35 mm F1.0 lens and 50 Hz frame rate
- Detection range up to 3300 m and identification range up to 830 m
- 1024 × 768 AMOLED display
- One-shot zeroing, ballistic calculation and recoil-activated video
- Super resolution, Picture-in-Picture and wireless app connectivity
- 18650 battery with at least 5 hours of battery life
- IP67 aluminum-alloy housing and Picatinny MIL-STD-1913 rail mounting
Technical data
Specification table
| Product | ADVENTURE 03 Thermal Imaging Scope |
|---|---|
| Model | AD03 35/64 |
| Sensor | |
| Type | Uncooled Vox |
| Resolution | 640 x 512px |
| Pixel Pitch | 12μm |
| NETD | ≤25mk |
| Frame rate | 50Hz |
| Optics | |
| Focal length | 35mm/ F1.0 |
| System Magnification | 1.69 |
| Digital Zoom | x1/2/3/4/8 |
| Eye relief | 45mm |
| Diopter Adjustment | –5 D ～ +5 D |
| FOV | 12.5°×10° |
| Focusing mode | Manually |
| Detection Range | 3300m |
| Identification Range | 830m |
| Display type | AMOLED |
| Display resolution | 1024x 768 px |
| Display size | 0.39 inch |
| Palettes | Red-Hot /White-Hot /Black-Hot /lron Red/ Green Hot/ Rainbow/Highlight /Outline |
| Picture-in-Picture | Support |
| ELECTRONICS | |
| Wireless Connectivity | Video and lmage via App |
| Onboard Recording | Video and lmage |
| Compass & Gyroscope | Support |
| Storage | 16/32G |
| Data Connector | USB-C |
| USB | Data export/ Firmware Update |
| Battery Type | 18650 |
| Battery Life | ≥5h |
| Start Up Time | 10 s |
| Super Resolution | Support |
| Recoil Activated Video | Support |
| One-Shot Zero | Support |
| Ballistic caculation | Support |
| PHYSICAL | |
| Mounting System | Picatinny MIL-STD-1913 Rail |
| ENVIRONMENTAL/ WARRANTY | |
| Housing Material | Aluminum Alloy |
| Waterproofing | IP67 |
| Operating Temperature | -20℃~50°C |
| Storage Temperature | -40℃~70°C |
| Max. Recoil | 1000 g(300 Win./7mm Mag) |
