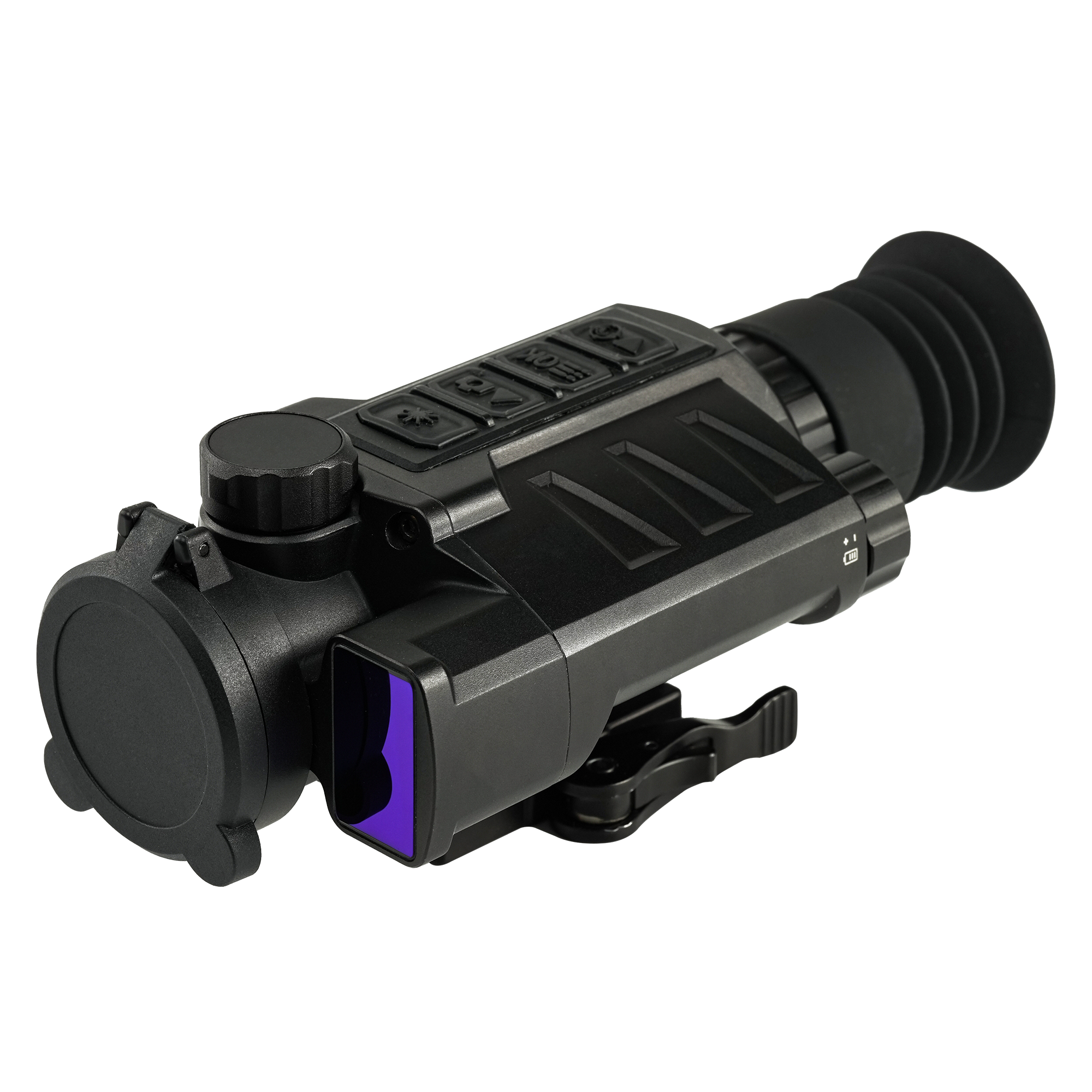

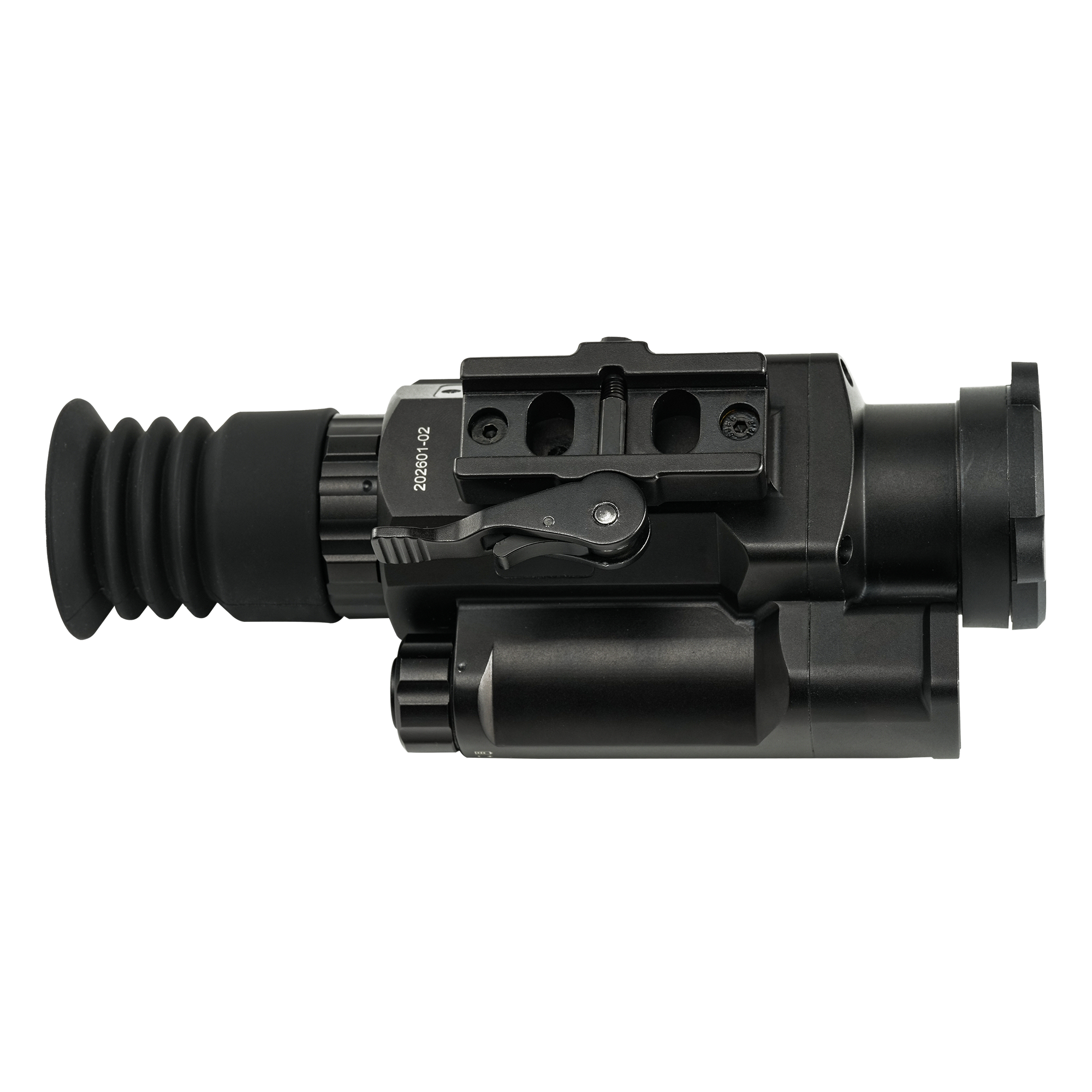

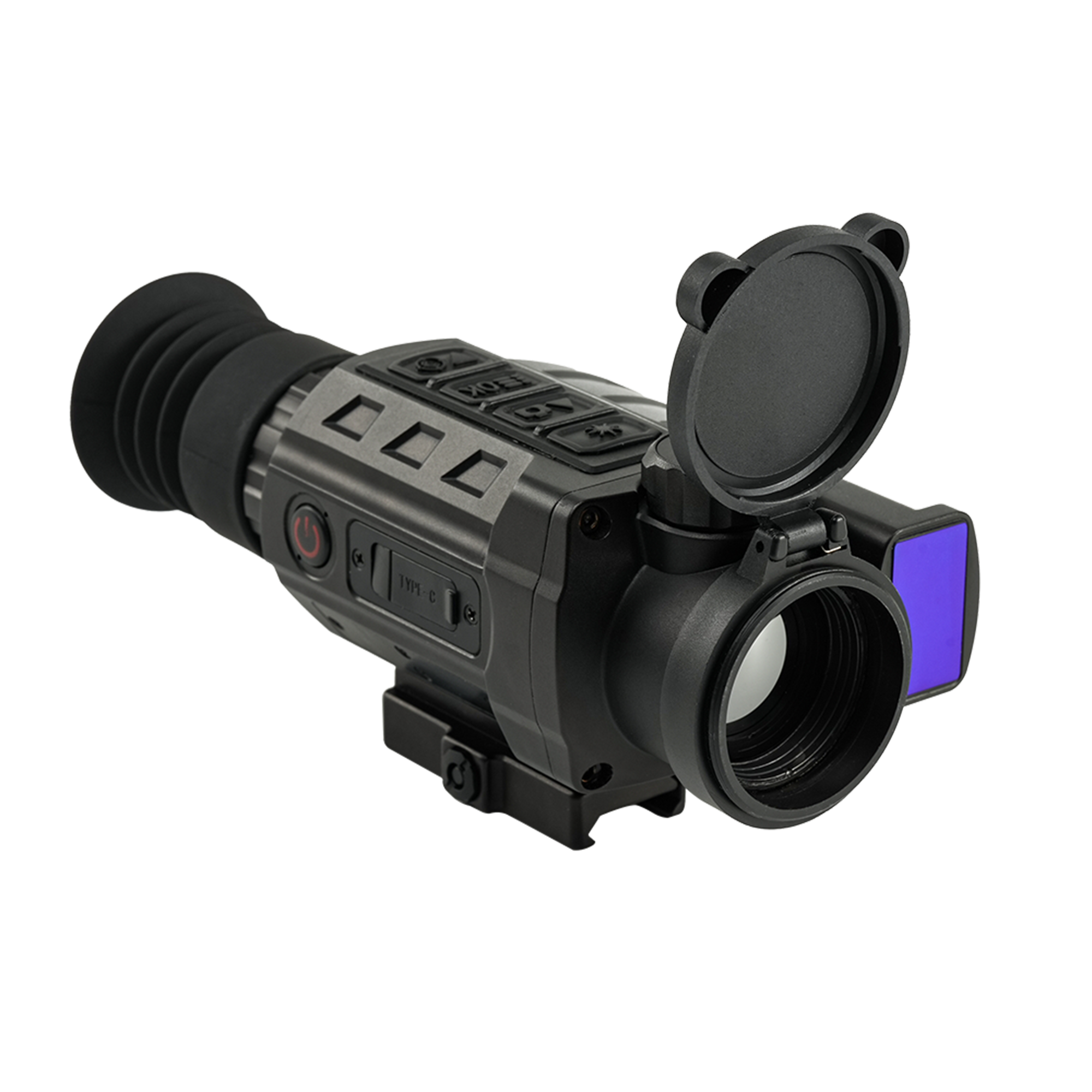

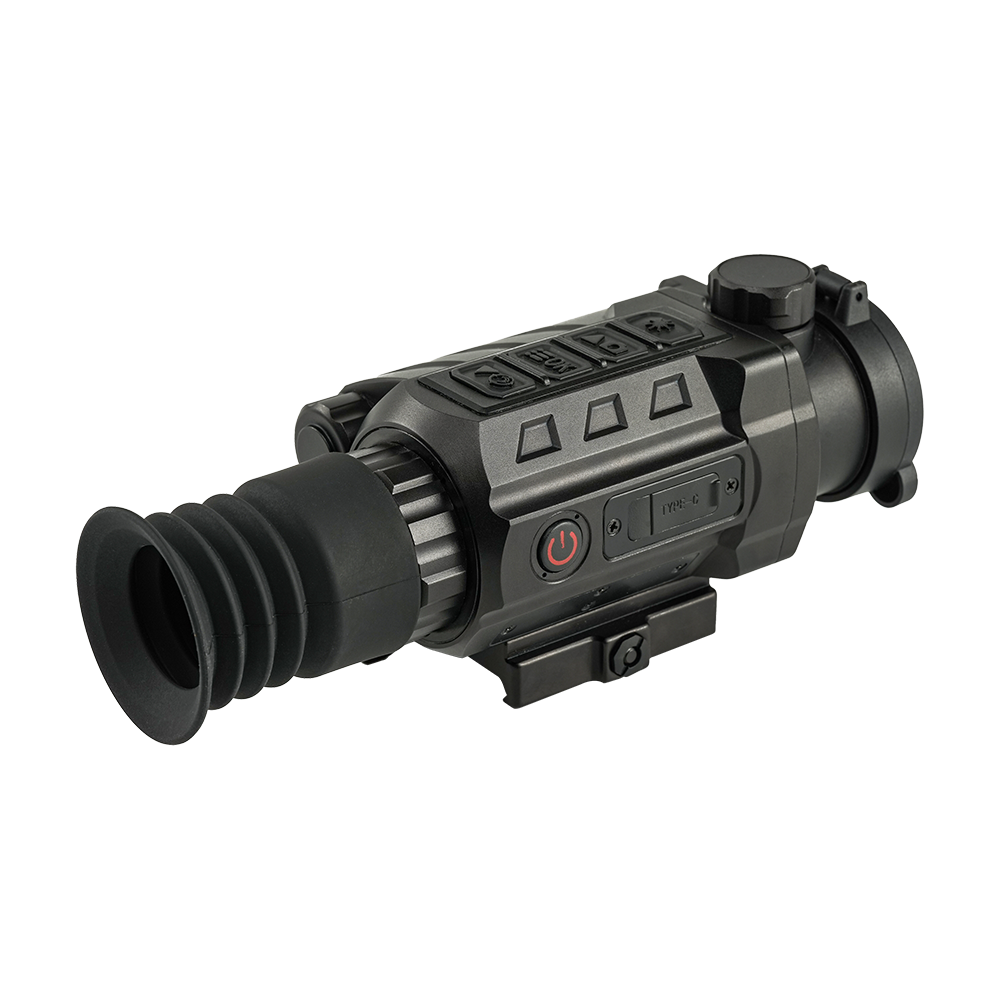

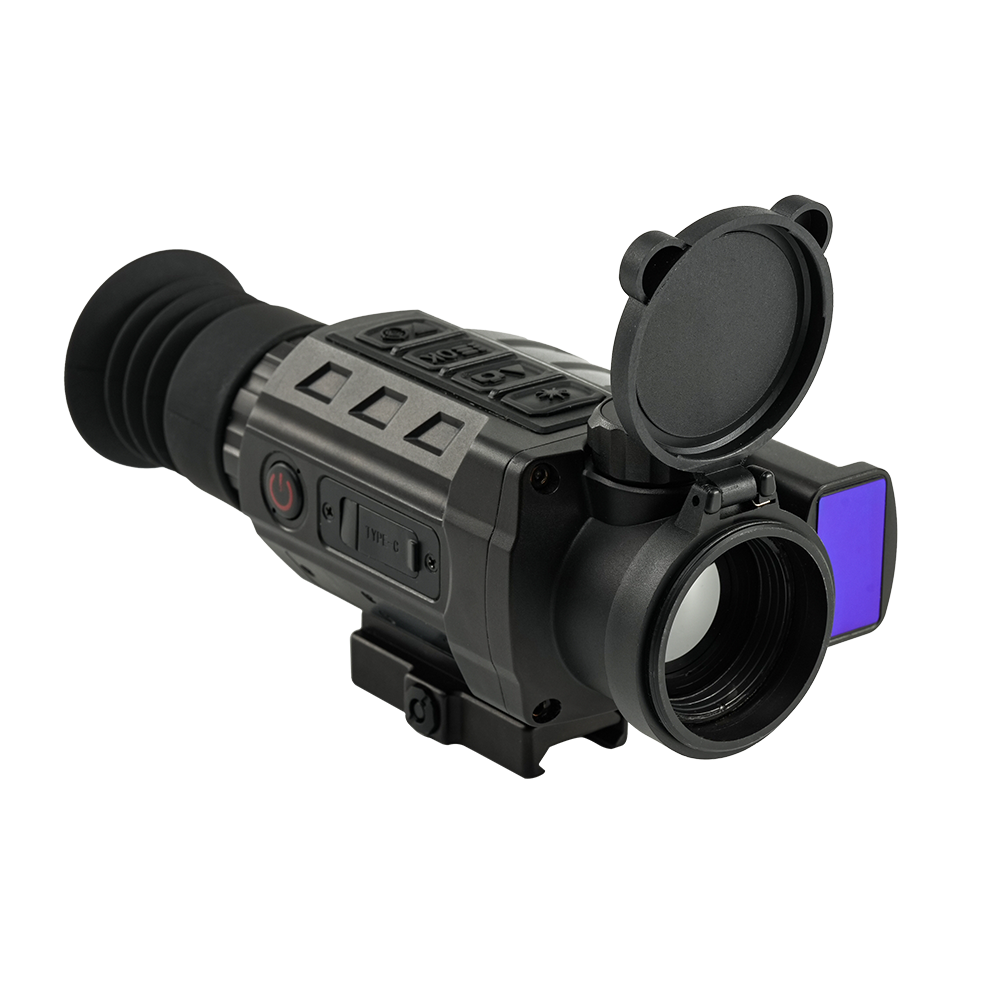

ADVENTURE 04 Thermal Imaging Scope
Designed for night hunting, outdoor observation, and long-range aiming, suitable for target search in low-light and complex environments. The device is compact and lightweight, balancing portability and flexible mounting, ideal for extended outdoor use. It features…
Resolution
640 x 512 px
Pixel pitch
12 µm
NETD
≤25mk
Frame rate
50 Hz
Product features
Thermal imaging advantages
- 640 × 512 detector, 12 μm pixels and NETD ≤25 mK
- 50 mm F1.0 lens, 2.7× magnification and 50 Hz imaging
- Detection range up to 4000 m and identification range up to 1000 m
- Built-in 905 nm laser rangefinder with ±2 m accuracy
- Ballistic calculation and Picture-in-Picture
- Video/audio recording and 64 GB onboard storage
- 18650 battery with 5.5-hour battery life
- IP67 aluminum-alloy housing; 580 g without battery
Technical data
Specification table
| Product | ADVENTURE 04 Thermal Imaging Scope |
|---|---|
| Sensor | |
| Resolution | 640 x 512 px |
| Pixel pitch | 12 µm |
| NETD | ≤25mk |
| Frame rate | 50 Hz |
| OPTICS | |
| Focal Length | 50mm/F1.0 |
| Magnification | 2.7x |
| Digital Zoom | x1/2/4/8 |
| Eye relief | 48mm |
| Exit Pupil | 5mm |
| Diopter Adjustment | ±5 dptr |
| Focus Range | 5m~∞ |
| FOV | 8.6°x6.9° |
| Detection Range | 4000m |
| Identification Range | 1000m |
| Display Type | OLED |
| Display Resolution | 1024x 768 px |
| Display size | 0.39 inch |
| Palette | White Hot / Black-Hot/ Red Hot/ Green Hot/ Iron Red |
| ELECTRONICS | |
| Wireless Connectivity | Support |
| Onboard Recording | Support |
| Audio Recording | Support |
| Compass & Gyroscope | Support |
| Onboard Storage | 64G |
| Data Connector | Type-C |
| Battery Type | 18650 |
| Battery Life | 5.5h |
| Start-up Time | 10s |
| Ballistic caculation | Support |
| Picture-in-Picture | Support |
| Reticle Color | Black/ White/ Blue/ Yellow/ Green/ Red |
| Reticle Type | 7 |
| PHYSICAL | |
| Size | 198mm×91mm×84mm |
| Weight | 580g（Without Battery） |
| ENVIRONMENTAL/WARRANTY | |
| Housing Material | Aluminum Alloy |
| Waterproofing | IP67 |
| Operating Temperature | -40℃~50℃ |
| Storage Temperature | -50℃～+70℃ |
| Max. Recoil | 1000 g/s² (300 Win./7mm Mag) |
| LRF | |
| Wavelength | 905nm |
| Max Measuring Range | Human 600m； Big Objective: 1000m |
| Measurement Accuracy | ±2m |
