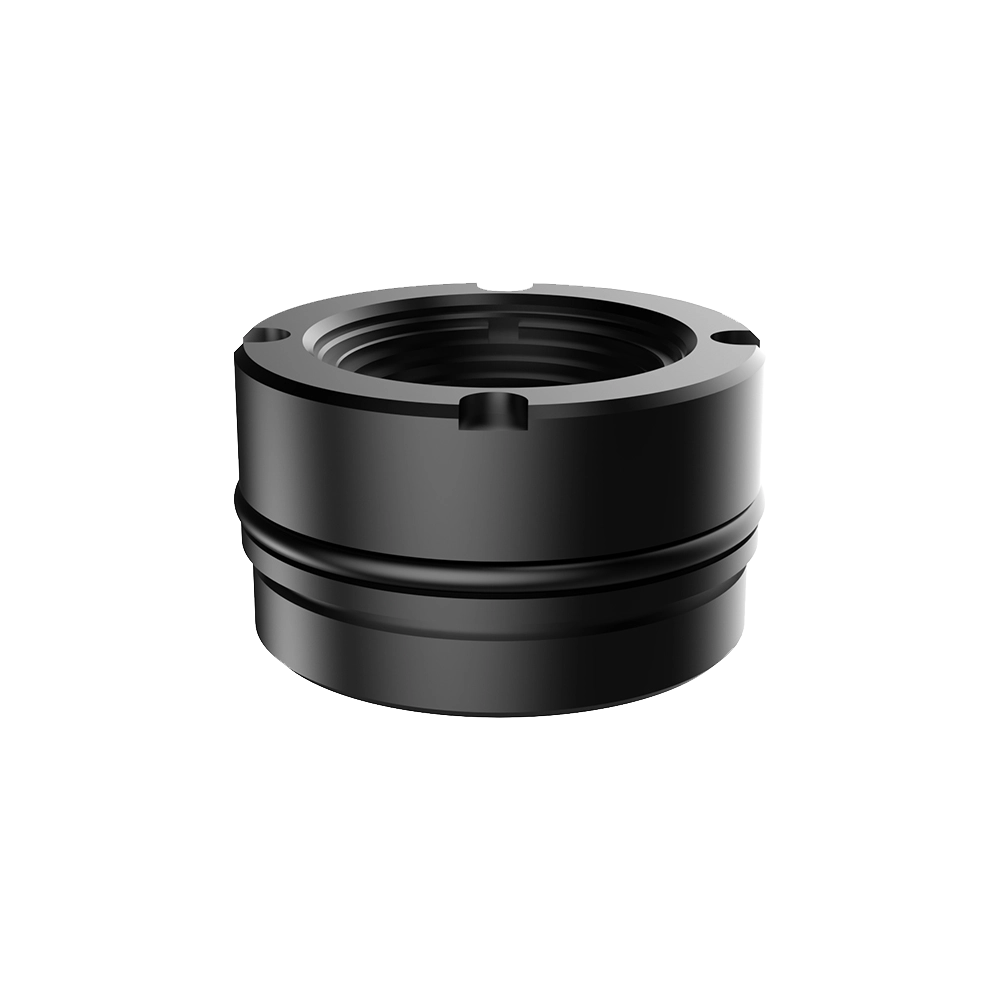

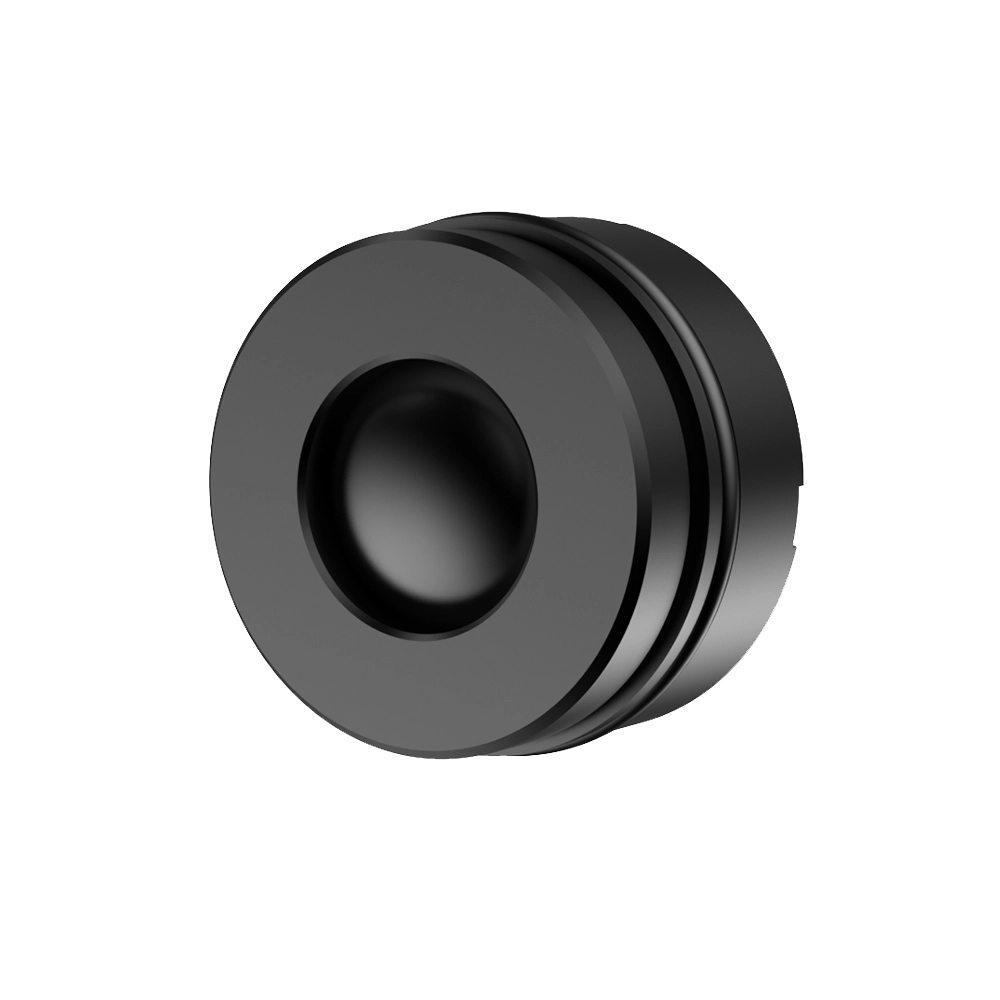

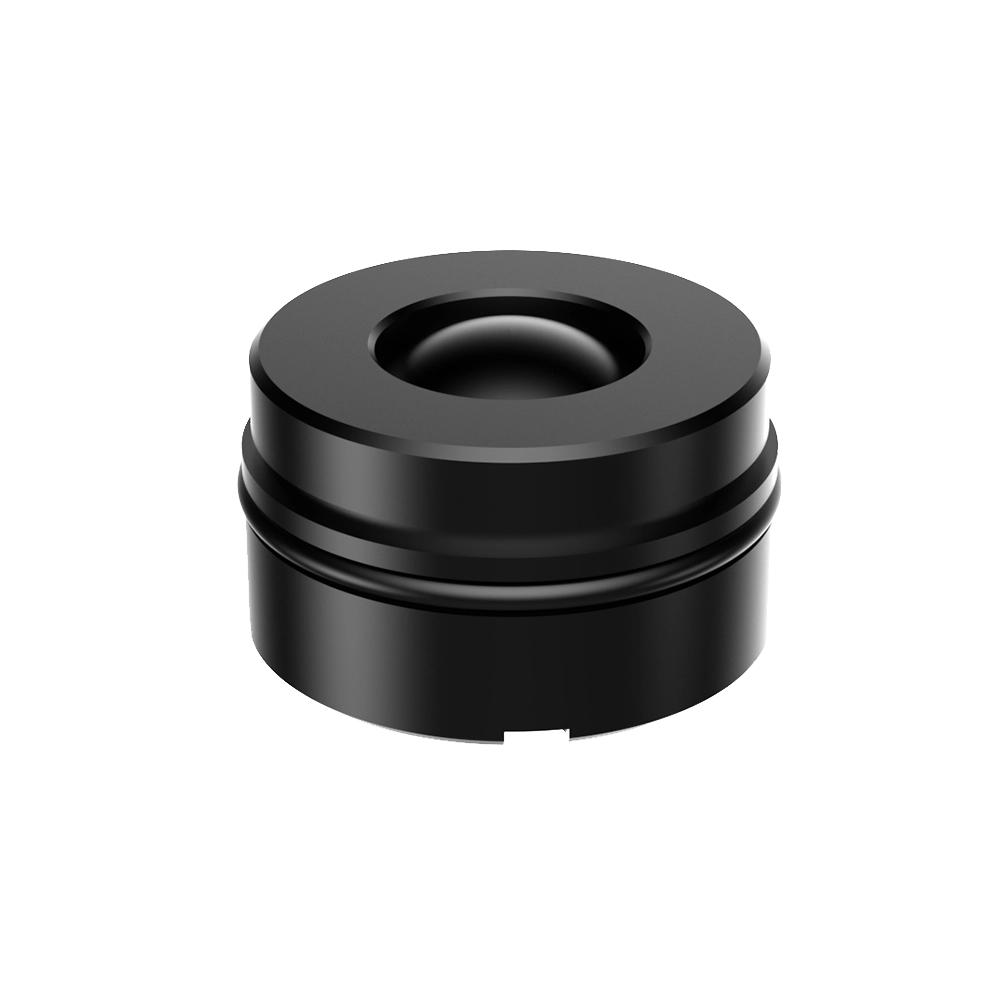

Blunith 0910S 9.1mm F1.0 LWIR Lens
Blunith 0910S 9.1mm F1.0 Lens
Focal Length
9.1mm
F/#
1.0
Working Band
8-12 μm
Transmittance
≥ 88%
Product features
Thermal imaging advantages
- This compact infrared lens has been designed for seamless integration with a wide range of thermal camera modules. It provides a cost-effective solution for compact thermal imaging applications where size and weight are critical.
- With its athermalized design, this lens ensures stable imaging performance from 0.5 m to infinity across varying temperatures. Its ultra-lightweight structure makes it ideal for portable and space-constrained systems. This lens is suitable for small-format detectors.
Technical data
Specification table
| 0910S 9.1mm F1.0 | |
|---|---|
| Property | Value |
| Focal Length | 9.1mm |
| F/# | 1.0 |
| External Coating | / |
| Working Band | 8-12 μm |
| Transmittance | ≥ 88% |
| Distortion | ≤10% |
| Relative Illuminance | ≥80% |
| MTF | / |
| / | |
| Focusing Type | Athermalized |
| Focusing Range | 0.5m – ∞ |
| Operation Temperature | -40℃ to 60℃ |
| Sealing | IP67 |
| Lens Material | IRG 206 |
