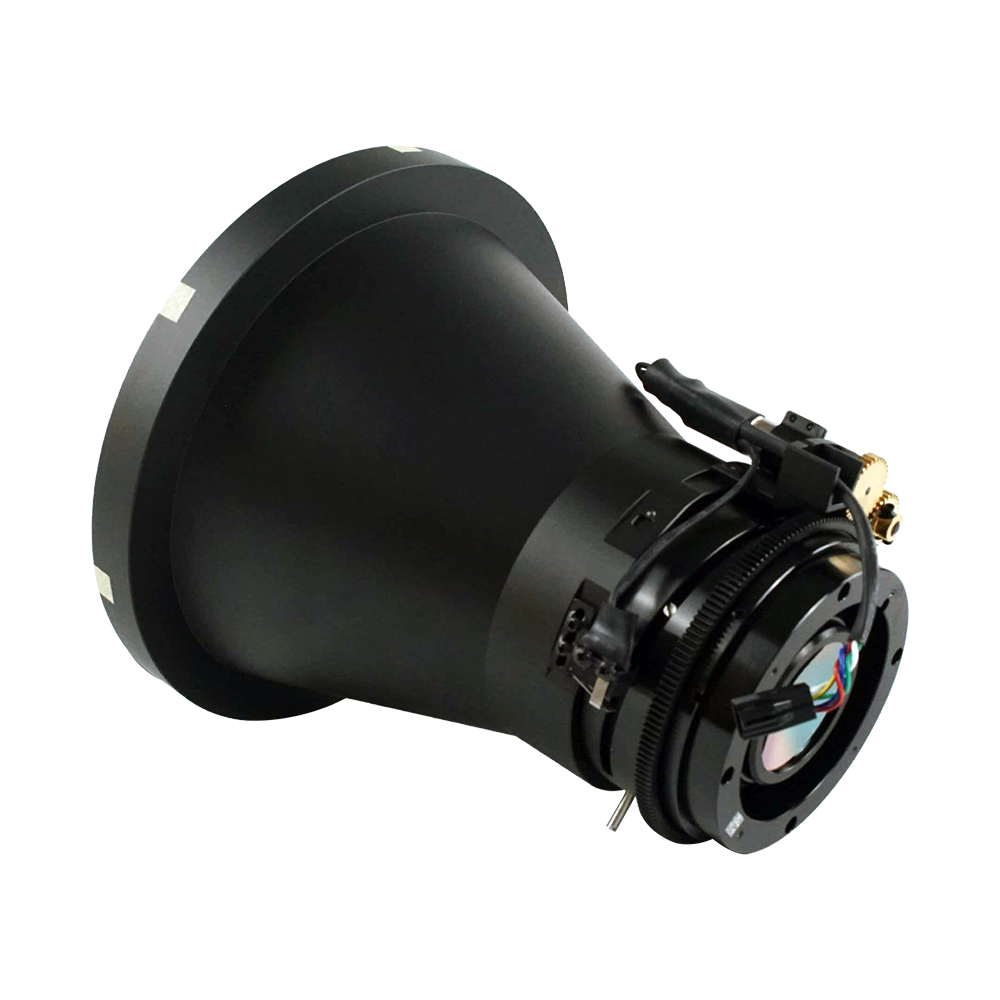

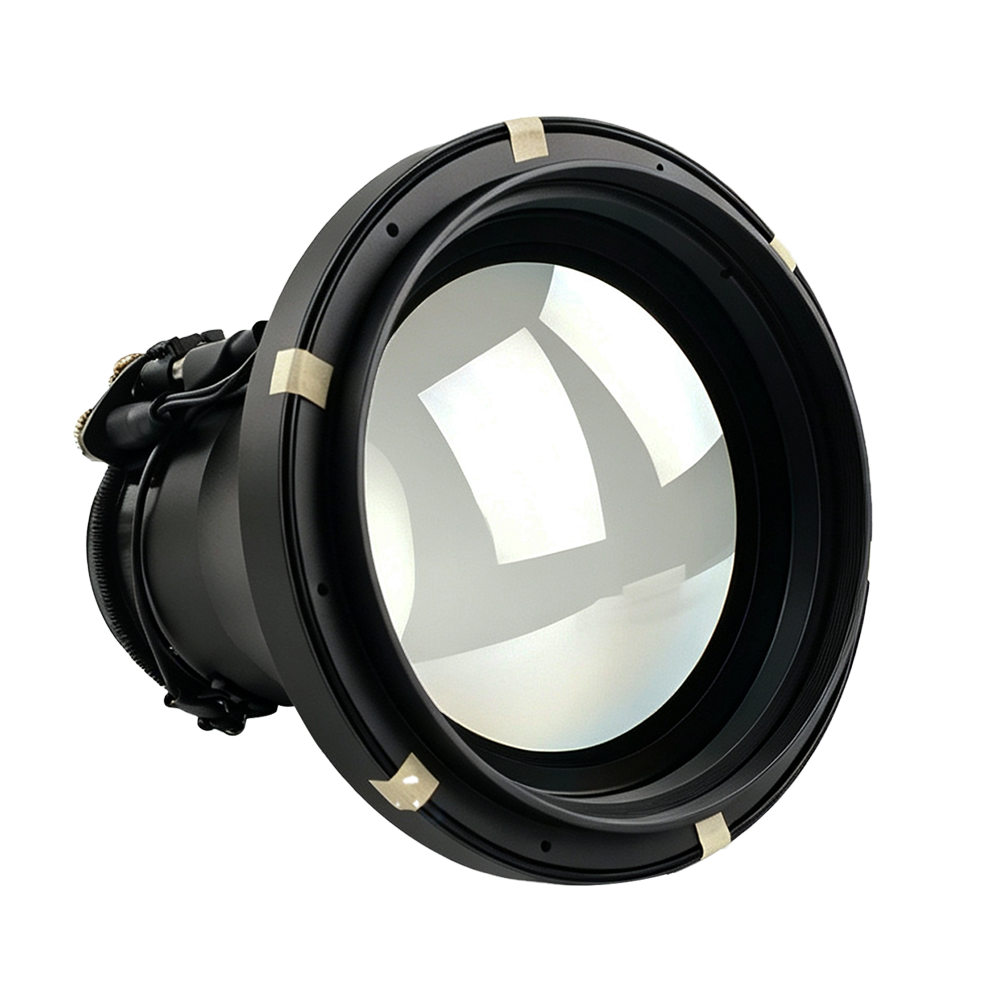

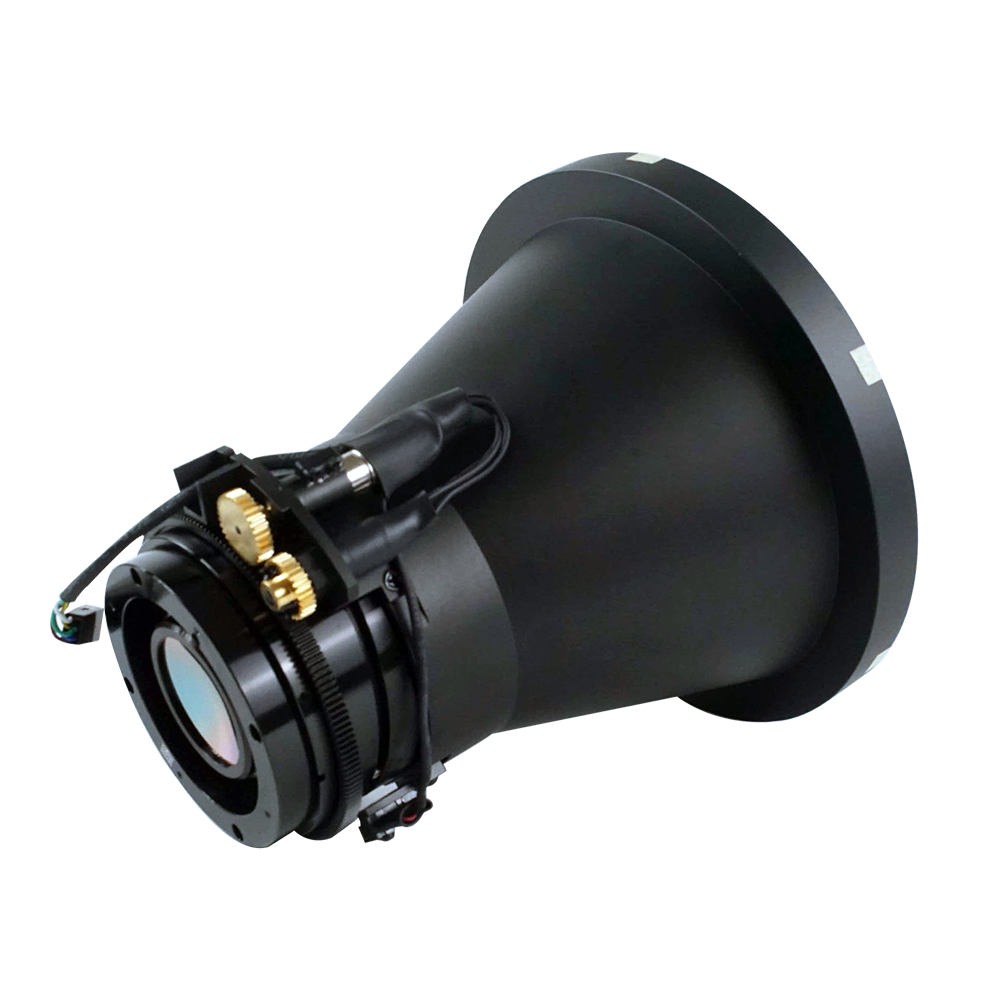

150mm Chalcogenide Infrared Lens with Motorized Focus
This 150mm Chalcogenide Infrared Lens with Motorized Focus provides stable imaging performance and excellent environmental adaptability, with reliable dust‑proof and waterproof capabilities.
Transmittance
>92%
Sealing
Front IP67
Operation Temperature
-40℃~80℃
Product features
Thermal imaging advantages
- Well‑suited for EO ball
- Suitable for thermal imaging, fire‑fighting, security and coastal defense applications.
Technical data
Specification table
| Product | 150mm Chalcogenide Infrared Lens with Motorized Focus |
|---|---|
| EFL | 150mm |
| Sensor | 1280 x 1024(12μ) |
| F No. | 1.2 |
| FOV(D x H x V) | 7.51° x 5.85° x 4.69° |
| Wavelength | 8~12μ |
| Transmittance | >92% |
| Front Lens Coating | DLC coating |
| Focus | Motorized focus |
| Focus Distance | 30m~∞ |
| Athermalizing | Mechanical athermalization |
| Sealing | Front IP67 |
| Operation Temperature | -40℃~80℃ |
| Weight | <1580g |
| Interface Thread | Verified with Standard Thread Gauges |
