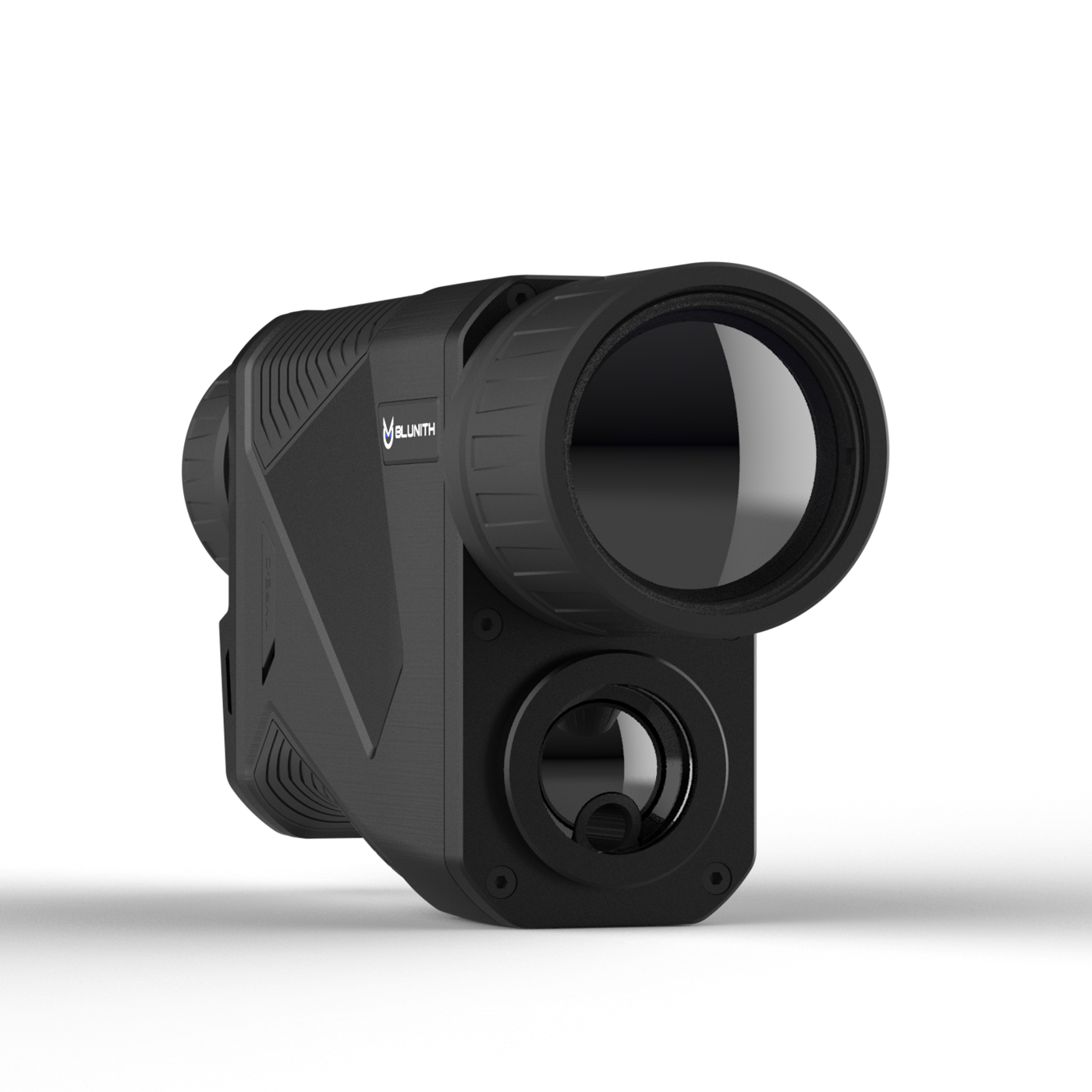

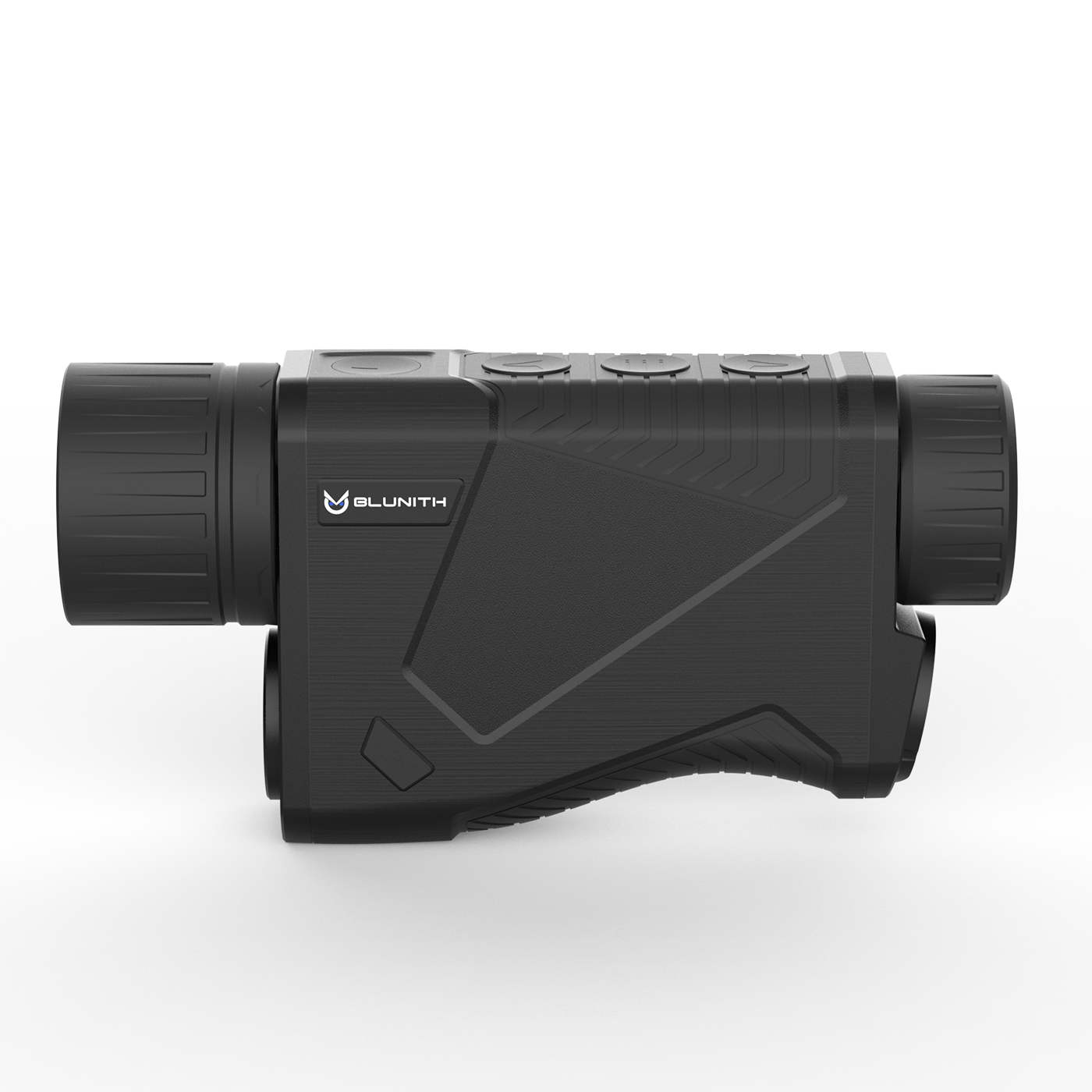

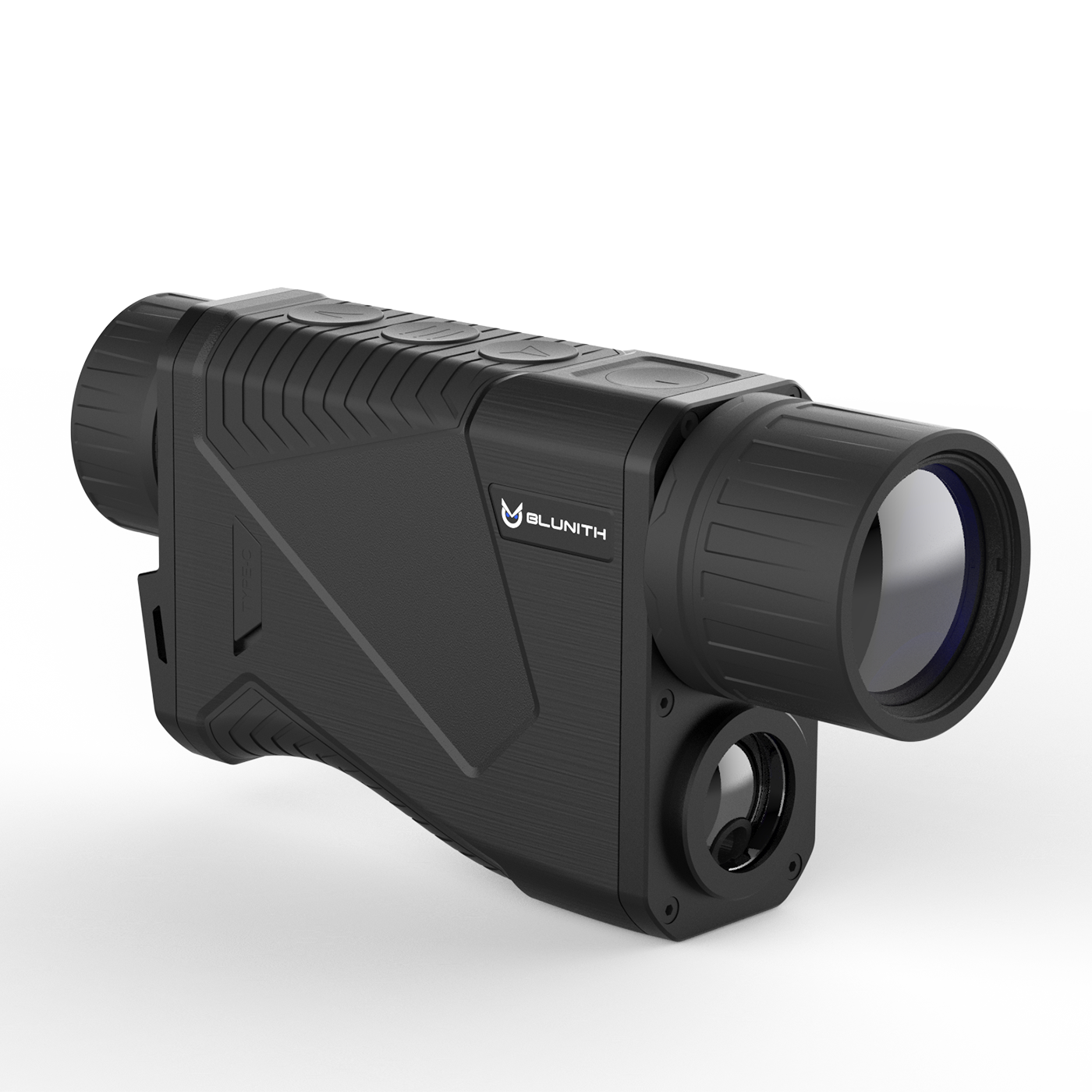

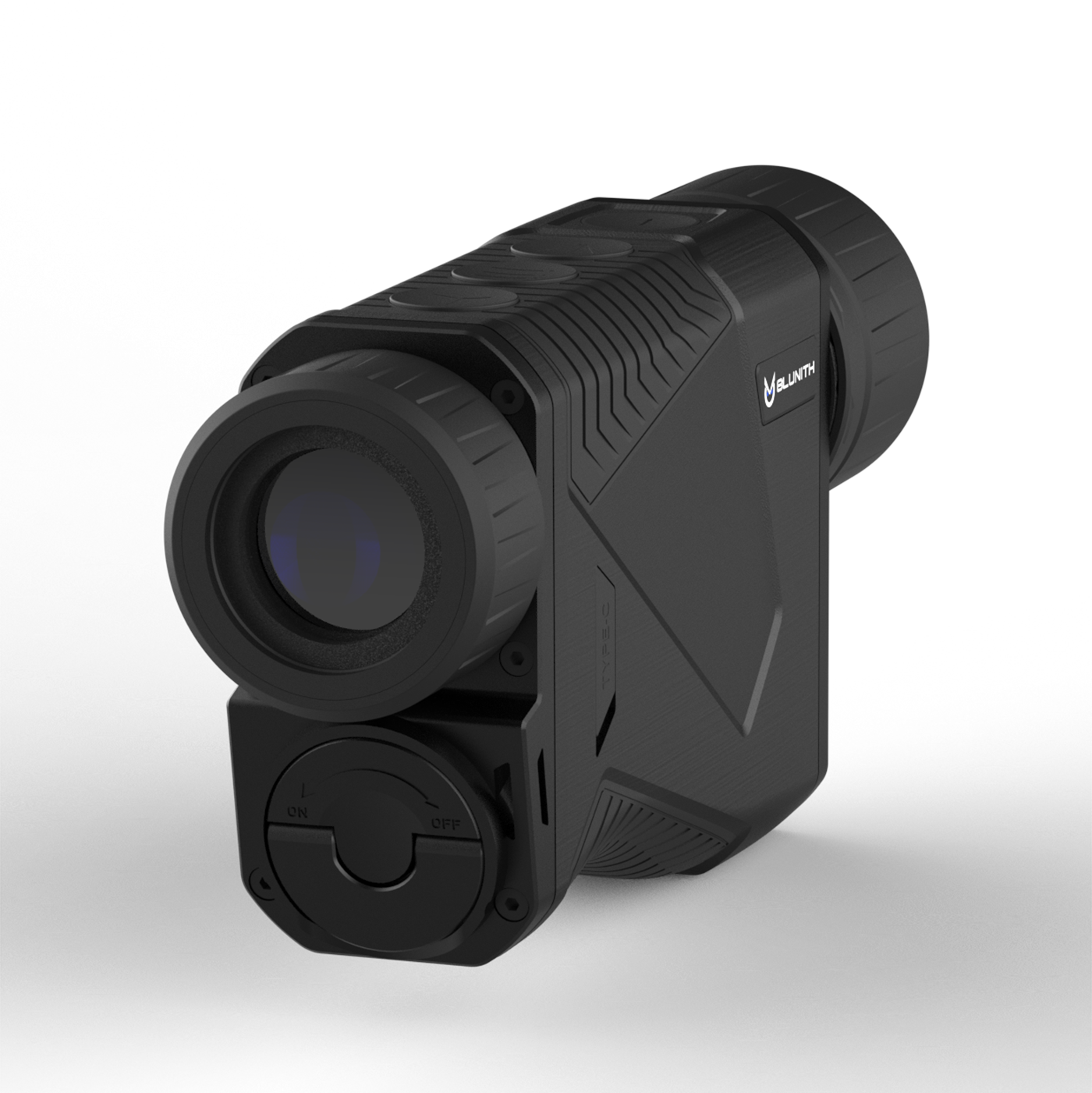

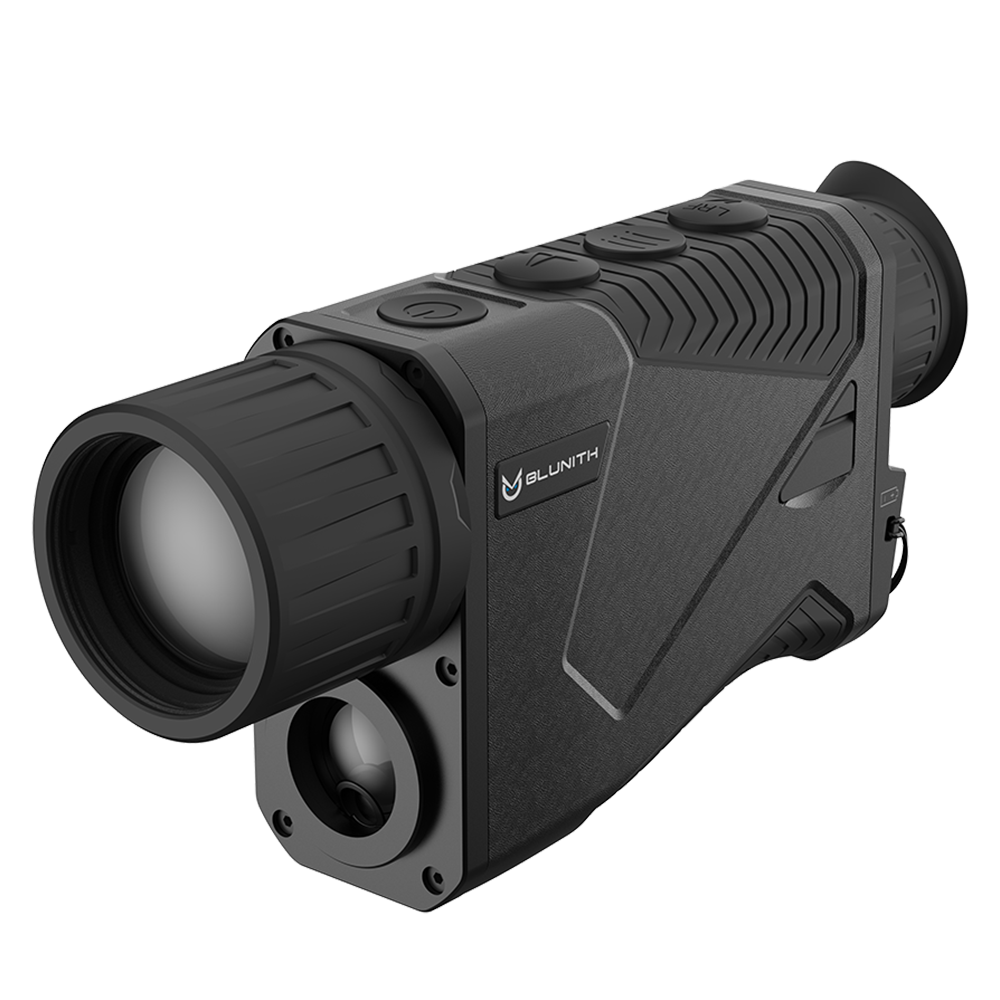

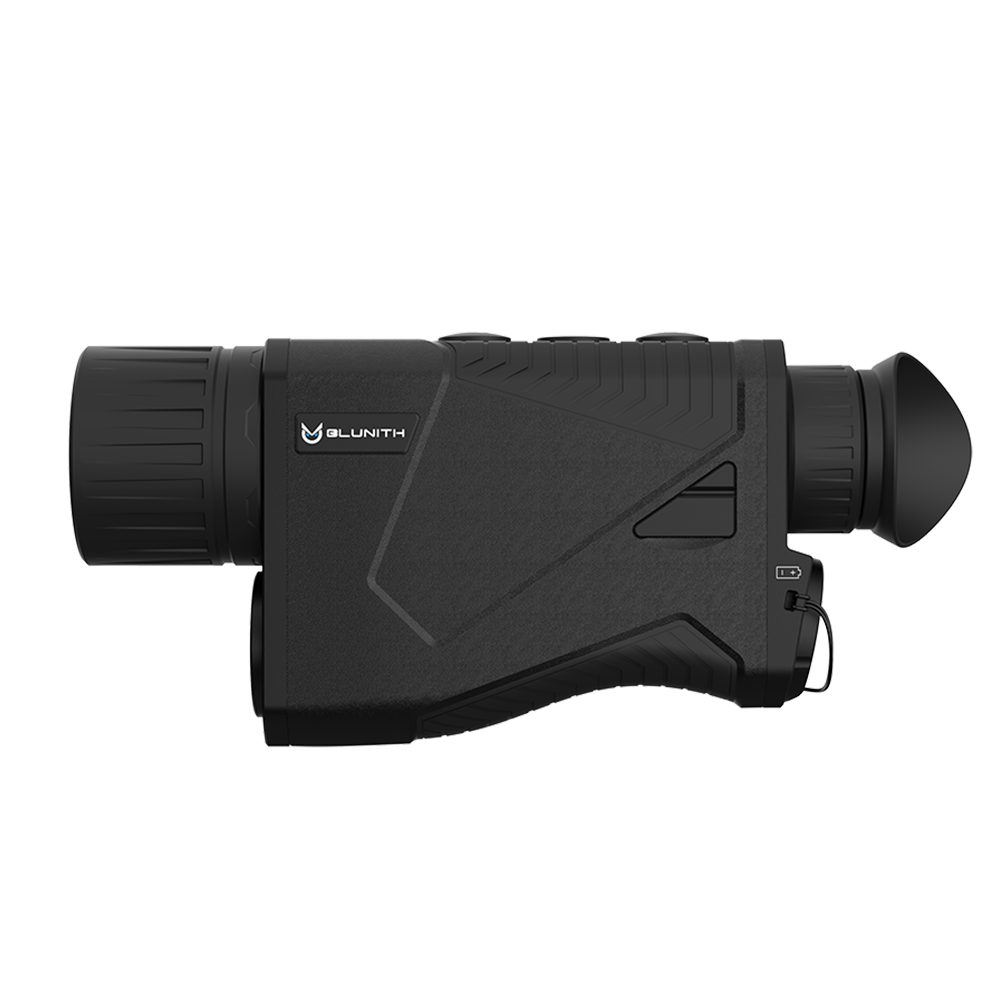

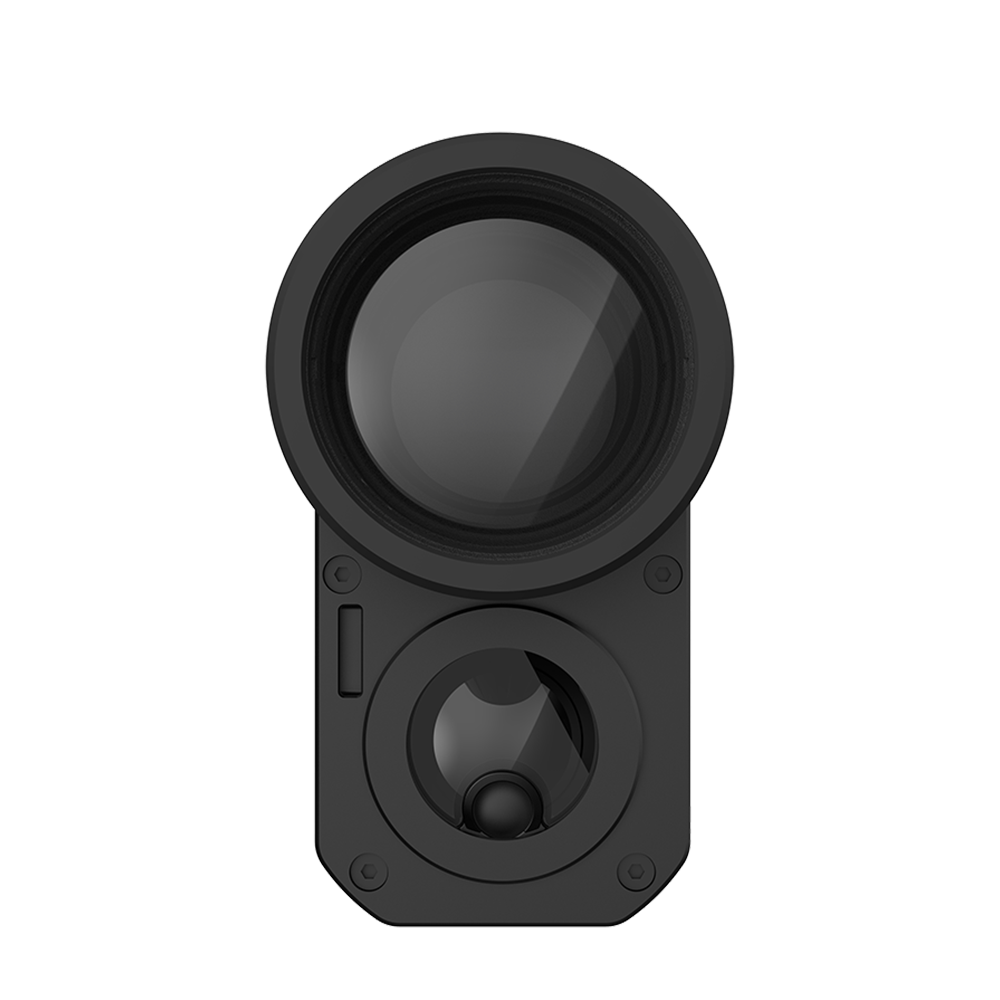

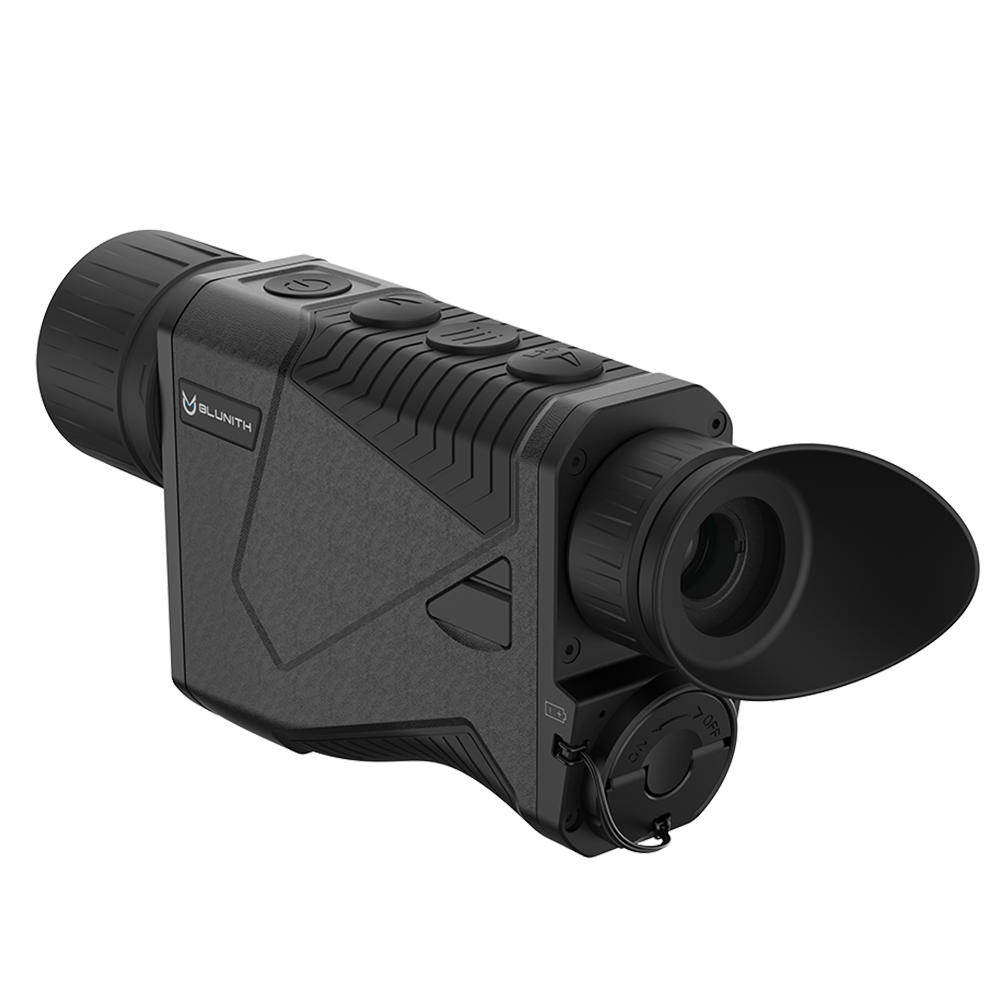

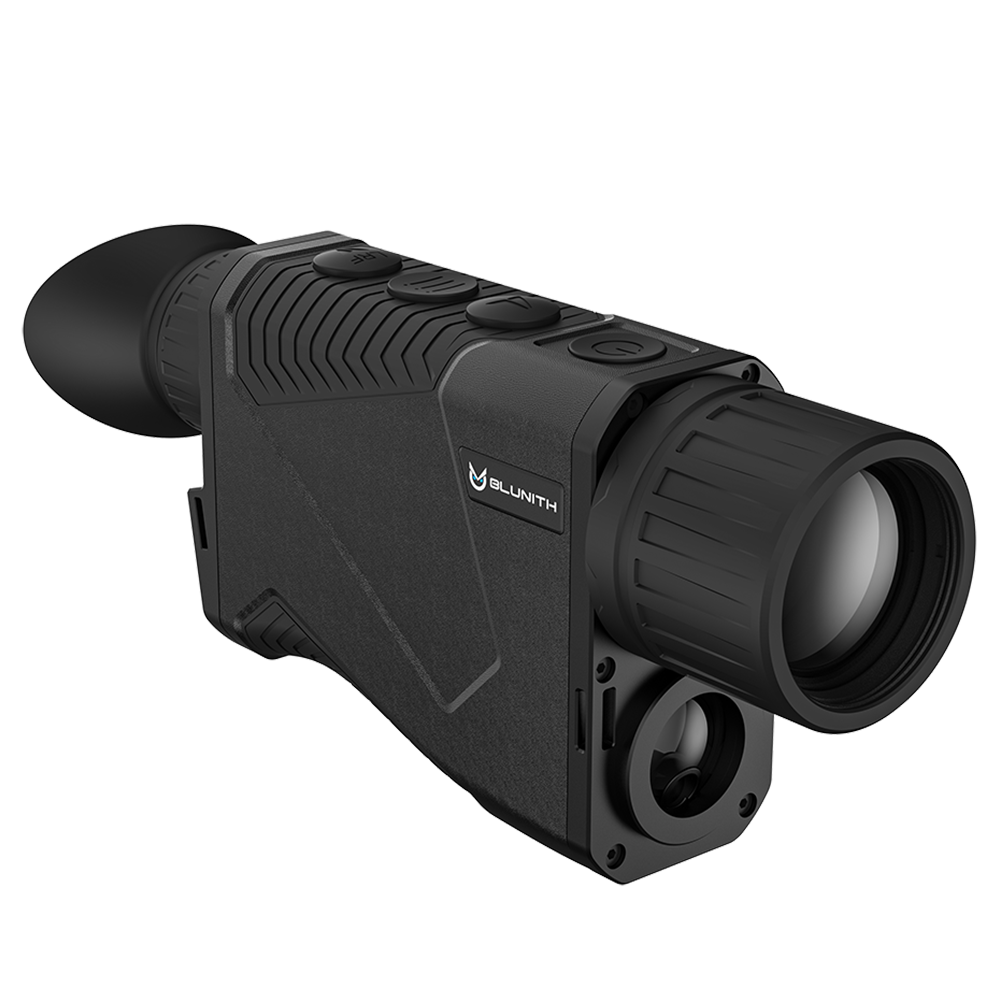

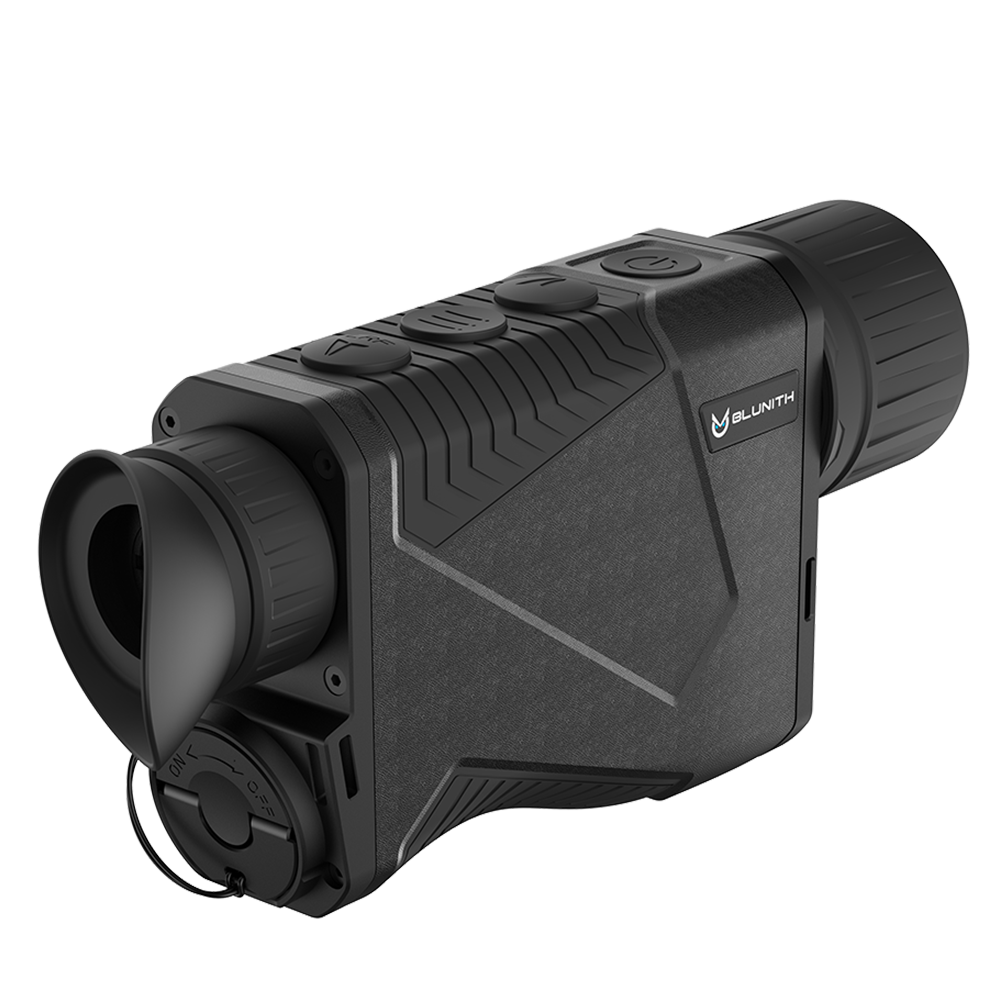

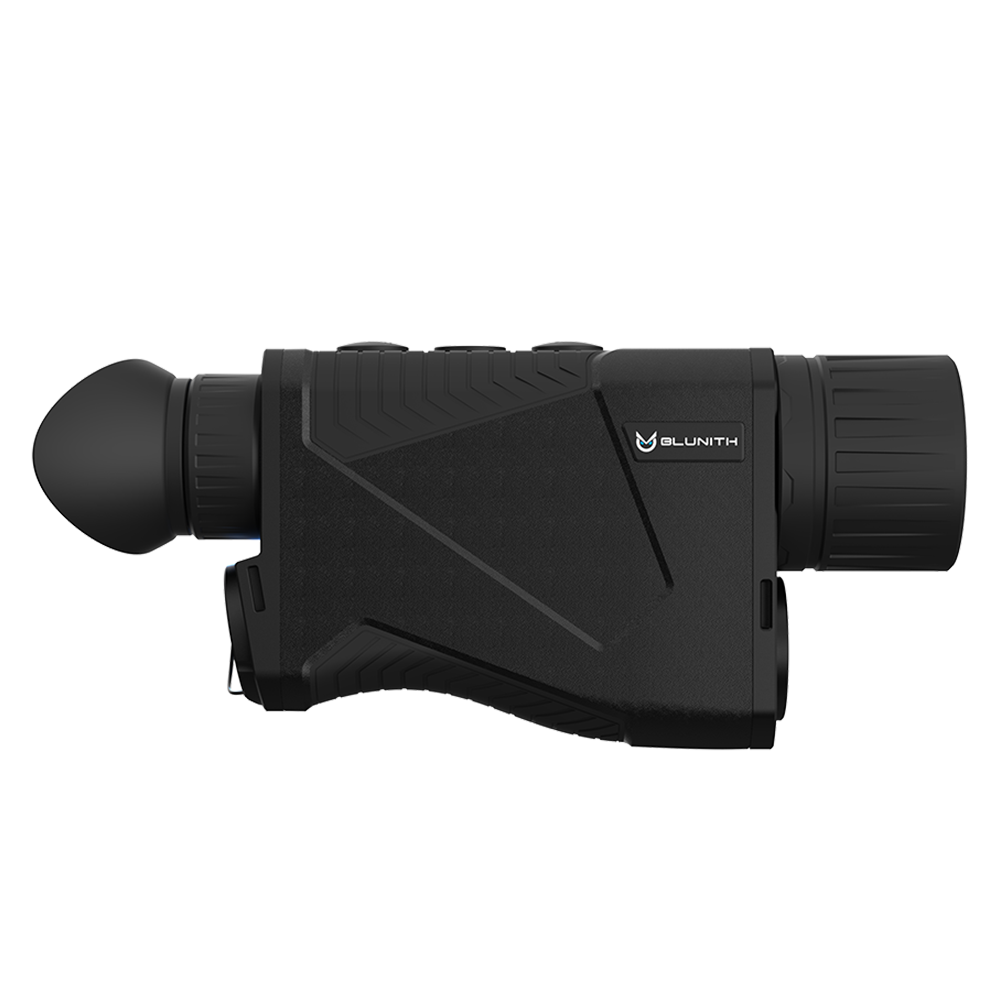

JT Series Thermal Imaging Monoculars
At Blunith, we specialize in tailor-made thermal imaging solutions that reflect your brand's identity and operational needs. Custom Branding, Interface Personalization, Feature Customization, Aesthetic Design, Durable Quality, Ongoing Support Partner with Blunith for a thermal imaging…
Model
JT25/38 / JT35/38 / JT35/64
Resolution
384 x 288 px / 384 x 288 px / 640 x 512 px
Pixel Pitch
12 µm / 12 µm / 12 µm
NETD
<20mk / <20mk / <20mk
Product features
JT Series Thermal Imaging Monoculars
- High Sensitivity Sensor: Exceptional sensitivity for clear thermal imaging.
- Tone Mapping Operators (TMO): Groundbreaking processing algorithms for image quality.
- LRF (Laser Rangefinder): Precise long-distance detection up to 2000 yards.
- Premium HD-class Germanium Optics: High-quality germanium glass for superior optical clarity.
- Intuitive UI: Customizable user experience for ease of use.
- Palette: Flexible color settings to suit various observation needs.
- Waterproof: IP67 rating for reliable operation in wet conditions.
- WIFI: Facilitates seamless integration with iOS and Android devices for remote control and viewing.
Technical data
Specification table
| Model | JT25/38 | JT35/38 | JT35/64 |
|---|---|---|---|
| SENSOR | |||
| Type | Uncooled Vox | Uncooled Vox | Uncooled Vox |
| Resolution | 384 x 288 px | 384 x 288 px | 640 x 512 px |
| Pixel Pitch | 12 µm | 12 µm | 12 µm |
| NETD | <20mk | <20mk | <20mk |
| Frame Rate | 50Hz | 50Hz | 50Hz |
| OPTICS | |||
| Objective Lens | 25mm/F1.0 | 35mm/F1.0 | 35mm/F1.0 |
| Digital Zoom | 1-8X | 1-8X | 1-8X |
| Eye Relief | 26mm | 26mm | 26mm |
| Diopter Adjustment | ±5 dptr | ±5 dptr | ±5 dptr |
| Display Type | OLED | OLED | OLED |
| Display Resolution | 1024×768 px | 1024×768 px | 1024×768 px |
| Palettes | Red-hot/ White-hot/ Black-hot/ Iron Red/ Rainbow/ Highlight/ Outline | ||
| Picture-in-Picture | Support | Support | Support |
| LRF | |||
| Safety Class For Laser | FDA Class 1 / IEC60825-1 CLASS 3R | FDA Class 1 / IEC60825-1 CLASS 3R | FDA Class 1 / IEC60825-1 CLASS 3R |
| Wavelength | 905nm | 905nm | 905nm |
| Max Measuring Range | 2000Y | 2000Y | 2000Y |
| Measurement Accuracy | ≤1000Y: ±1Y >1000Y：±0.2% | ≤1000Y: ±1Y >1000Y：±0.2% | ≤1000Y: ±1Y >1000Y：±0.2% |
| ELECTRONICS | |||
| Wireless Connectivity | Video and Image via App | Video and Image via App | Video and Image via App |
| Onboard Recording | Video and Image | Video and Image | Video and Image |
| MIC | Support | Support | Support |
| Compass & Gyroscope | Support | Support | Support |
| Onboard Storage | 32GB | 32GB | 32GB |
| Data Connector | USB-C | ||
| External Power Supply | 5V, 9V (USB-C) | 5V, 9V (USB-C) | 5V, 9V (USB-C) |
| Battery Type | 18650 | 18650 | 18650 |
| Battery Life | 5h | 5h | 5h |
| PHYSICAL | |||
| Size | 155 mm *82 mm *42.3mm | 161 mm *82 mm *45mm | 161 mm *82 mm *45mm |
| ENVIRONMENTAL / WARRANTY | |||
| Housing Material | ABS+PC | ABS+PC | ABS+PC |
| Waterproofing | IP67 | IP67 | IP67 |
| Operating Temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
